42CrMo4 / 4140 round bar buying guide

Lock the grade identity and specification hierarchy before pricing

42CrMo4 and SAE 4140 are commonly screened for shafts, hydraulic-rod blanks, pins, couplings, flanges, gears, high-strength fastener stock, and other parts where the design may need a chromium-molybdenum steel with a controlled heat-treatment response. That application list is only a starting point. The drawing authority still has to decide whether the grade, section, strength-toughness window, surface integrity, and manufacturing route are suitable for the actual load spectrum, stress concentration, temperature, corrosion protection, and failure consequence. Procurement should not turn a familiar application label into a fitness-for-service guarantee.

The first buyer-side correction is terminology. 42CrMo4 is an ISO/European designation, commonly paired with material number 1.7225. In the United States route, 4140 is an SAE grade designation defined chemically by SAE J404; SAE states that AISI no longer issues the grade designations listed in that document. “ASTM 4140” is therefore incomplete wording. ASTM International publishes product and general-requirement specifications—such as ASTM A29/A29M for common hot-wrought bar requirements and ASTM A434/A434M for quenched-and-tempered alloy bars—but the buyer must name the applicable ASTM document, class or property basis, and order details instead of treating ASTM as the grade owner.

Revision status matters. DIN Media records DIN EN 10083-3:2007-01, the German adoption of EN 10083-3:2006, as withdrawn and replaced by DIN EN ISO 683-2:2018-09. That is useful standards-management evidence, not permission to rewrite a customer drawing. If an RFQ cites EN 10083-3, quote against the exact stated edition or raise a clarification that identifies the proposed replacement and every affected clause. The design or purchasing authority must approve the migration before the purchase order changes.

Create a short specification hierarchy in the RFQ: purchase order and approved deviations first, then drawing and project specification, then the named material/product standard and its referenced general requirements. ASTM A29/A29M itself states that the purchase order and individual material specification take precedence over its general requirements in a conflict. A visible hierarchy prevents boilerplate supplier terms, an ERP material alias, or an unreviewed cross-reference from silently controlling the order.

Sources:[1][2][3][4]

Read chemistry and mechanical properties from the correct standard route

The chemistry overlap explains why 42CrMo4 and SAE 4140 often enter the same engineering review, but the permitted ranges are not identical. A heat can satisfy one row and miss a limit in the other. Dual certification is therefore a clause-by-clause conformity question, not a conclusion drawn from the supplier's equivalence table. Ask for the actual heat analysis and compare it only after the purchaser has approved the standards against which conformity will be assessed.

Mechanical-property language is even easier to misread. ISO 683-2 covers bars and other product forms in stated heat-treatment and surface conditions; its mechanical requirements are restricted to the sizes in the relevant table. SAE J404 is a chemical-composition standard and does not create one universal tensile, yield, elongation, impact, or hardness range for every 4140 bar. ASTM A434/A434M can provide a quenched-and-tempered bar route with named strength classes and size limits, but it must be intentionally invoked and reconciled with the requested SAE grade, dimensions, sampling, and certificate.

Values are condensed from the named standards for RFQ screening and must be checked against the purchaser's licensed controlling edition, product form, heat/product analysis rules, condition, size band, sampling, and test definitions. Only accepted order terms define the requirements for a specific supply.

Sources:[1][3][5]

Sources:[1][3][4][5]

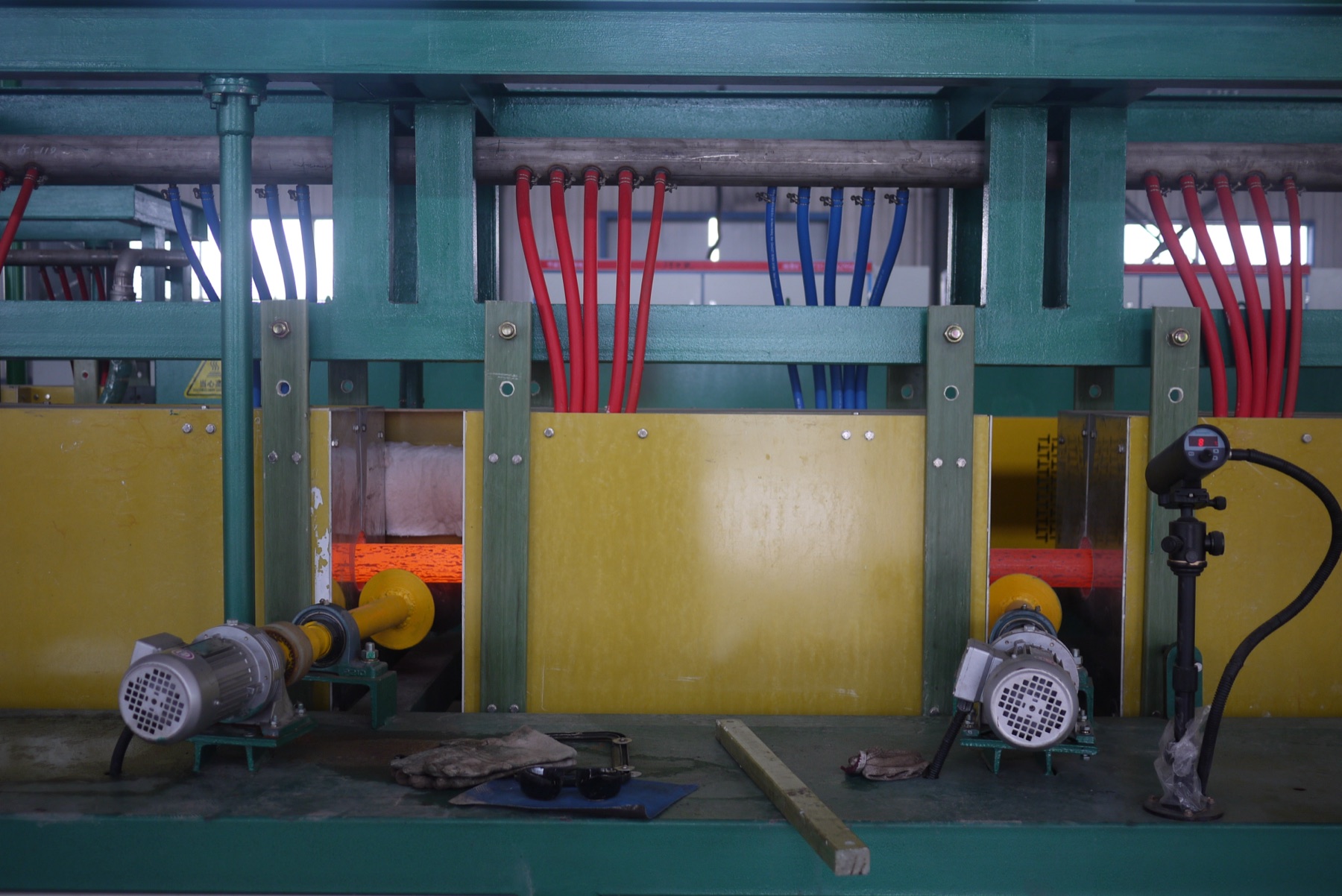

Treat delivery condition, ruling section, and surface route as one decision

“QT” or “+QT” describes a quenched-and-tempered condition, not a complete result. The order still needs the property range, ruling section, impact temperature when applicable, hardness basis if used, sampling orientation and radial location, test frequency, and whether the reported specimen represents the delivered bar, a prolongation, a sacrificial bar, or a separately heat-treated coupon. ISO 683-2 explicitly limits mechanical requirements to defined sizes. When a purchased diameter sits outside the applicable band—or the finished component has a different effective heat-treatment section—the purchaser and supplier need an agreed evidence route rather than an extrapolated table value.

Ruling section is the section used to select the relevant mechanical-property requirement; it may not equal the largest purchased diameter or the fatigue-critical feature. A stepped shaft can be heat-treated as a large blank yet fail at a smaller fillet, thread root, keyway, or spline. Record both the thermal section and the geometry that controls design risk. If core response matters, surface hardness alone cannot demonstrate it. Engineering may instead require an agreed test location, hardness traverse, hardenability evidence, qualification coupon, test ring, or other section-relevant verification.

Surface condition belongs in the same review. Hot-rolled or forged black bar may leave scale, decarburization, seams, and dimensional variation for downstream removal. Peeled or turned bar can expose subsurface discontinuities and reduce machining time; ground bar can support tighter finish and dimensional routes but does not repair an incorrect metallurgical condition. State ordered and minimum clean-up diameter, machining allowance per side, tolerance, ovality, straightness, roughness where functional, permitted defect-removal method, and the inspection size. A quote for extra diameter is not automatically safer if the allowance increases quench mass and machining cost without a defined purpose.

The buyer should also define who owns final heat treatment and straightening. Annealed or normalized bar intended for forging and customer heat treatment carries a different risk allocation from supplier-delivered +QT bar. For a QT route, ask whether straightening occurs before or after final tempering, whether a stress-relief step is proposed, and which condition the mechanical tests represent. These questions expose process assumptions without forcing the purchaser to prescribe a furnace recipe that the supplier must validate.

Sources:[1][5]

Build an inspection and release plan that answers specific risks

Start with identity controls: heat number, grade, standard and edition, size, quantity, delivery condition, and marking should reconcile across the purchase order, bar or bundle identification, and inspection document. ISO 10474 defines inspection-document types supplied according to the order, but the document name does not decide which results must appear. State whether actual heat analysis, tensile, impact, hardness, dimensional, surface, or other results are required; the test method, sampling basis, and acceptance values must come from the controlling product standard, drawing, or agreed inspection plan.

Use EN 10204 type 3.1 wording only when the purchaser actually requires that document route and has reconciled it with the material standard. A certificate is not a substitute for traceability after cutting. If bars will be divided into blanks, specify how heat and lot identity will be transferred and whether individual bar numbers are required. For witnessed or third-party inspection, define the hold point, notice period, records to review, release authority, and what happens if the inspector cannot attend; otherwise the commercial offer may include a label without an executable inspection sequence.

Nondestructive testing needs a complete acceptance clause. “UT passed” does not identify the product method, scan surfaces and coverage, calibration or reference blocks, sensitivity, acceptance level, test stage, personnel qualification, reporting fields, or treatment of untested end zones. The same discipline applies to magnetic-particle testing, decarburization, macrostructure, cleanliness, or grain-size requirements. Add a test only when its result changes an acceptance decision, then write the pass/retest/deviation rule before quotation.

Substitutions should be processed as technical deviations. Require the proposed designation and edition, actual or target chemistry, product specification, condition, size, property and sampling basis, inspection and certificate route, and any price or schedule effect. Procurement can compare completeness and commercial terms, but the design/materials authority approves technical suitability and quality approves the evidence plan. No supplier cross-reference, ERP alias, or certificate remark should bypass that sequence.

Sources:[1][4][6]

Write an RFQ line that suppliers can quote without assumptions

A useful inquiry separates mandatory requirements from supplier declarations and permitted alternatives. Mandatory fields identify the drawing, grade and controlling standard, diameter and ruling section, length and quantity, delivery and surface condition, mechanical and inspection requirements, certificate, traceability, packing, destination, and requested delivery term. Declaration fields ask the supplier to state the offered manufacturing route, test representation, straightening sequence, exceptions, and available evidence. Alternative fields make clear whether substitutions are prohibited or may be proposed for written approval.

The example below uses the current ISO route for a quenched-and-tempered shaft blank. It is a drafting model, not a reusable engineering specification. Replace every diameter, property, condition, sampling, inspection, and logistics field with the drawing and project requirements. If the project instead controls SAE 4140 through ASTM A434/A434M, name the required class and applicable size/property route; do not leave ISO mechanics beside an ASTM order unless engineering has intentionally created and verified dual requirements.

At bid comparison, reconcile each quotation against the same matrix. Record comply, deviation, or not applicable for the standard edition, grade, chemistry, product route, condition, size, property band, sampling, surface, dimensions, inspection, certificate, marking, packing, and destination. Resolve conflicts before purchase-order release, including supplier terms that redefine tolerance, testing, or acceptance. Freeze the accepted deviation status in the PO and acknowledgment. Only accepted order terms define the requirements for a specific supply.

Item: Quenched-and-tempered alloy steel round bar for shaft blanks
Drawing: [drawing number and revision]; application and critical section identified in attachment
Required grade: 42CrMo4 (1.7225)
Standard and edition: ISO 683-2:2016 / purchaser-specified national adoption
Size and quantity: Ø85 mm × 6,200 mm, 24 bars; ruling section 85 mm unless drawing review establishes otherwise
Delivery condition: +QT, peeled; ordered diameter tolerance, straightness, roughness and minimum clean-up size per attached specification
Mechanical requirements: Applicable size band plus project requirements at the stated orientation and sampling location; supplier to identify what each result represents
Inspection: Heat analysis, tensile and impact results, hardness, dimensions, surface and marking; UT only per attached method, coverage, acceptance and report requirements
Certificate: Purchaser-required inspection document with actual results, heat number and bar/lot traceability
Alternatives: SAE 4140 may be submitted only as a separate clause-by-clause deviation using the proposed product specification and property basis; written purchaser approval required before supply
Packing/marking: Grade, controlling standard, heat, size, PO item and bundle identity retained through shipment
Destination: [city, country and Incoterm]; requested shipment window [date range]
