Peeled vs ground steel bar: tolerance, finish and machining stock

The finished-part stock envelope

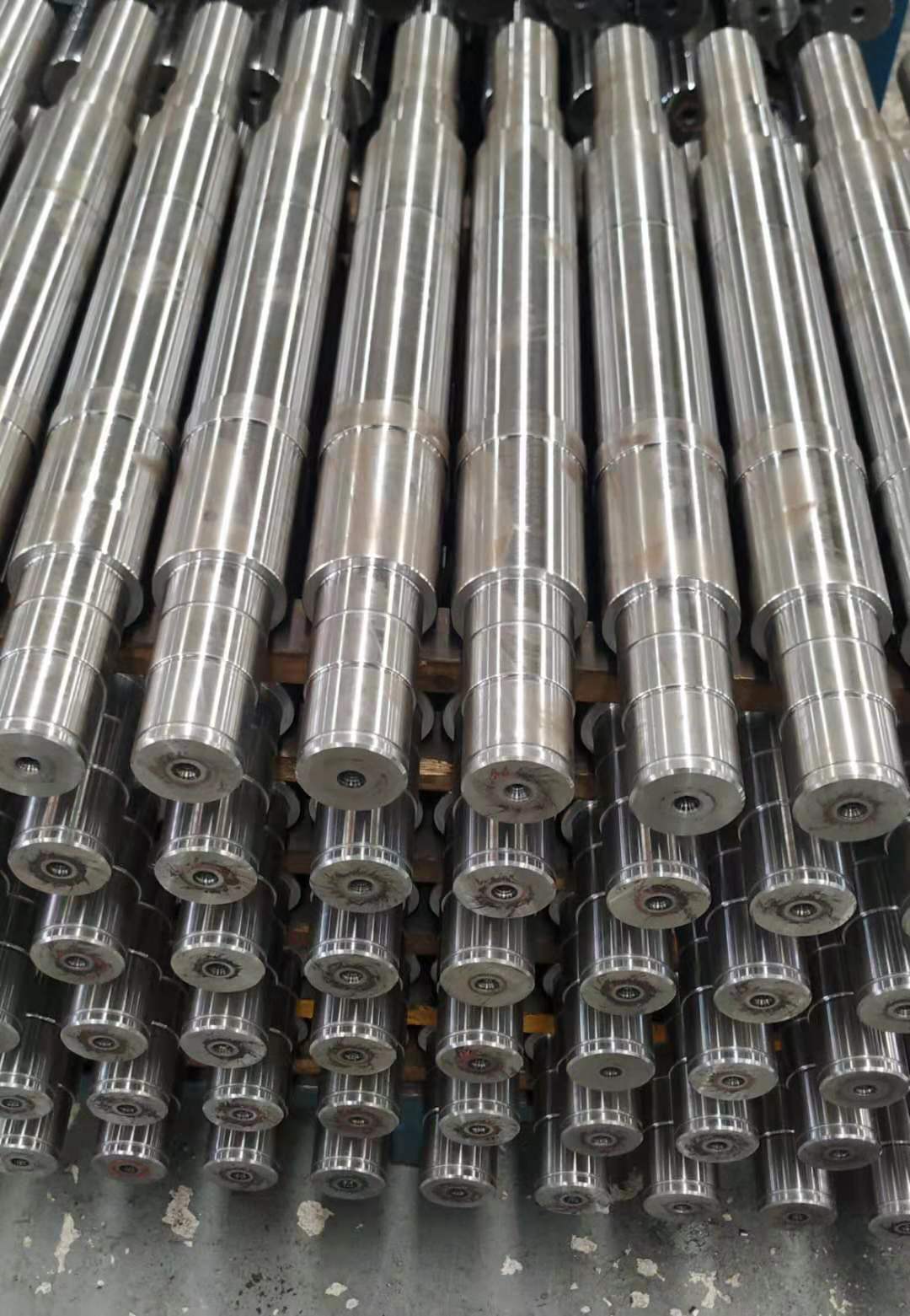

Start with the smallest acceptable material envelope at the next controlled operation. A shaft blank that will be rough turned, heat treated, finish machined, and ground at the buyer's plant has a different need from a bar intended to enter chrome plating near final diameter. Peeling may efficiently remove the hot-rolled outer layer and obvious surface discontinuities while retaining stock for later work. Grinding is often reviewed when the supplied diameter, roundness, straightness, or surface preparation must be closer to a downstream operation. Those are planning tendencies, not guaranteed outcomes.

Distinguish incoming diameter, supplier-delivered diameter and final part diameter. State the minimum stock required per side and the operation that consumes it. 'Ø80 peeled bar' leaves the supplied diameter, final diameter and tolerance ambiguous.

Map heat treatment, straightening and final sizing in sequence. Bars quenched and tempered after peeling may need later straightening and sizing stock. If grinding is the final supplier operation, inspect after grinding. Specify the surface, datum and inspection stage appropriate to the supplied bar; finished-part drawing tolerances may apply at a different operation.

The public summary of BS EN 10277:2018 covers bright steel products made by drawing, peeling or turning, and grinding. It addresses dimensions, surface quality, and inspection. ASTM A108-24 covers cold-finished carbon and alloy steel bars within its scope. Its supplementary requirements apply only when individually specified. Neither catalog page replaces the order details. Specify the exact grade, product standard, condition, dimensions, tolerances, tests, and supplementary terms.

For piston rods or plating-prepared stock, carry the agreed supplied diameter, cleanup allowance, straightness, and finish stage into the hydraulic cylinder rod application route so the bar condition is reviewed against the drawing and downstream surface responsibility.

Sources:[2][3]

What each process controls—and what it leaves open

A side-by-side route table is more useful than asking which process is better. It forces each technical outcome into the order instead of treating process names as specifications. The entries below describe buyer questions, not performance in every application. Actual achievable values depend on starting material, diameter, equipment, heat-treatment sequence, stock removal, length, handling, and the accepted product standard.

Peeling and grinding do not change the steel grade. Chemistry and mechanical properties remain governed by the ordered standard, condition, section and test basis. When changing from a hot-rolled to a bright-bar product route, review the delivery standard, test representation, permissible surface condition and dimensional conventions.

Ask the supplier to state the proposed starting size and nominal removal route. Too little removal can leave unacceptable surface features or residual decarburization when those are controlled; excessive removal can make the route uneconomic or reduce available stock for later machining. The purchaser does not need the supplier's proprietary operating settings, but it does need an auditable supplied-size and acceptance result.

Sources:[1][2][3][5]

Sources:[2][3]

Size, texture, straightness, and machining allowance

A surface route can meet one characteristic and miss another. Diameter, ovality or roundness, straightness, surface texture, waviness, lay, local discontinuities, residual stresses, and decarburization are different controls. Do not collapse them into 'ground finish' or 'precision peeled.' Select only the characteristics that affect machining, seals, bearings, coating, fatigue-sensitive geometry, or assembly, then give each one a limit and inspection basis.

For diameter, state the nominal value, tolerance standard and size basis, measurement stations and any end exclusions. Specify ovality separately when controlled. For straightness, define the permitted deviation, gauge length, supports, rotation method and inspection stage. Include transport and receiving requirements where handling can affect the result.

ISO 21920-1:2021 addresses how profile surface texture is indicated in technical product documentation. Its public abstract also draws an important boundary: it does not cover population (batch) requirements, and indication rules do not themselves set acceptance values for a particular product. A drawing or order should identify the required parameter, numerical limit, evaluation conditions or referenced standard, direction if relevant, measurement locations, sampling, and treatment of isolated damage. A supplier's generic roughness certificate cannot resolve a drawing that specifies a different parameter or measurement rule. ^[4]

Calculate machining stock from the worst-case supplied minimum diameter and the largest final finished diameter, not from nominal-to-nominal difference. Then subtract any stock needed to clean up straightness, heat-treatment movement, decarburization, or local surface conditions. If the buyer needs minimum stock per side at receipt, state it directly. Ask the supplier to declare whether its quoted nominal and tolerance preserve that minimum; do not assume a positive tolerance or a larger starting bar will be used.

Worked example — illustrative dimensions, not an inspection record. Supplied diameter: Ø80.00 ±0.05 mm. Maximum finished diameter: 79.40 mm. Required radial stock: 0.20 mm. The concentric diameter budget below must also allow for form, straightness, alignment and surface condition.

NIST’s surface-calibration work shows why a roughness comparison needs more than the reported Ra or Rz. Record the filtering and evaluation basis with the measurement. This makes a peeled-versus-ground comparison more useful where the supplied surface will remain on the component. ^[6]

Sources:[2][4]

Surface quality and decarburization

A bright visual surface is not proof of an agreed surface-quality class, absence of seams, or acceptable residual decarburization. ISO 9443:2018 specifies surface-quality classes for hot-rolled round, square, hexagonal bars and wire rod within its stated size scope and notes that it can apply to bright products when agreed at enquiry and order. Its public summary also says allowable decarburization depth is outside that document and points to ISO 3887 for measurement. Keep surface discontinuities and decarburization as separate acceptance lines.

State which surface is examined, the condition at examination, class or clear defect limits, examination method, coverage, sampling, permitted dressing, maximum local removal, minimum residual diameter, and report. Visual examination may be appropriate for one decision; magnetic-particle or another method may be required by a drawing or project specification for another. Do not add NDT by habit. If it is required, identify its method, personnel, procedure, acceptance basis, and stage separately.

ISO 3887:2023 describes methods for determining decarburization depth. The order still has to choose whether decarburization is controlled, the relevant depth definition, maximum allowed value, sample location, frequency, test condition, and report. Ask whether the requirement applies to the incoming hot-rolled material, the supplied peeled or ground surface, or the final heat-treated component. Those are different checkpoints and may give different purchasing consequences.

Protect the accepted surface after processing. Define separators, lifting or forklift contact, banding contact, rust-prevention material if required, wrap, bundle mass, and handling marks. A ground bar that meets its dimensional and texture requirements at final inspection can still arrive with banding dents, corrosion, or bend if packaging and receiving conditions are left open.

Sources:[1][5]

From process choice to RFQ wording

The RFQ example shows the open items a supplier needs to answer. It doesn't prescribe one tolerance, roughness, allowance, or straightness value for every route. Replace the example with the drawing, product standard, licensed editions, actual downstream route, and receiving capability. Ask the supplier to return its starting size, proposed route, achievable supplied values, inspection extent, exclusions, and deviations with the quotation.

At order review, reconcile the supplier's quoted nominal size and tolerance with the buyer's minimum cleanup stock. Check whether heat treatment occurs before or after the controlled surface operation, whether straightening follows that operation, and whether the inspection stage matches the condition shipped. Confirm that the MTC covers the ordered grade and condition while the dimensional and surface reports cover the processed bars actually delivered.

At receipt, preserve bundle identity before unstrapping and record transit damage, corrosion, tag discrepancies, representative dimensions, straightness, and surface condition. Judge the delivered result against the accepted order characteristics, not appearance alone.

Once the starting size, delivered size, process sequence, inspection stage, packing, and destination are fixed, transfer them to the structured steel bar RFQ so peeled and ground offers are compared on the same supply boundary.

Product route: 42CrMo4 +QT round bar, peeled and subsequently ground by supplier; grade/product standard and edition as listed on drawing S-118 Rev D.
Ordered size: Supplier to propose incoming size and stock-removal route; supplied size Ø80.00 mm with the stated order tolerance after final grinding.
Final size: Buyer-machined Ø79.40 mm; minimum cleanup allowance 0.20 mm per side at the worst-case supplied diameter, subject to drawing review.
Surface texture: Ra limit, evaluation settings, lay direction, measurement locations, sample extent, and isolated-damage rule exactly as drawing S-118 Rev D; no substitution with a visual finish statement.
Straightness: Maximum deviation over the stated gauge length and full-length check at post-grinding final inspection; supplier to state method and end-zone treatment.
Surface acceptance: Agreed surface-quality and residual-decarburization requirements stated separately, with method, sampling, repair rule, and minimum residual diameter.
Inspection and documents: MTC, heat traceability, per-bar dimensional/straightness record, sampled texture results, surface report, bundle marks, and quotation deviations.
Packing: Nonmetallic separators at controlled contact points, agreed rust prevention and wrap, maximum bundle mass, protected ground surfaces, destination Shanghai buyer warehouse via sea freight.

Sources:[1][2][4][5]
