Hydraulic cylinder rod steel selection

Define rod function and load case before grade

Start with the controlling drawing and the component's real function. A piston rod, guide rod, and other rod-like component may share a bar form while carrying different combinations of axial force, guidance, connection load, contact, and surface duty. Record whether the part is solid or hollow, its diameter and section changes, load direction, load cycling, support points, connection details, working environment, downstream finish, and inspection stage. A grade name without those inputs cannot establish whether the route is appropriate.

Use one vocabulary consistently. In this guide, hydraulic cylinder rod or piston rod means the component identified by the drawing; it does not imply that every guide rod has the same function. Separate stated design inputs from observations. A drawing dimension is an input, a measured straightness result is an inspection finding, and a proposed material-condition route is an engineering recommendation until the controlling design authority accepts it.

The Ovako paper is manufacturer-authored engineering context. It may illustrate load modes and buckling considerations, but it is not independent comparative evidence and cannot support superiority of a grade, product, or supplier. ISO 3320:2013 provides a separate dimensional interchangeability context. Neither source supplies an application-specific allowable load or a material selection decision.

Sources:[1][4]

Check compression, buckling, and unsupported length

Compression and buckling are different checks. Compression describes an axial load state; buckling is an instability that can occur before a simple material-yield comparison would answer the design question. The relevant model depends on geometry, support, end restraint, alignment, load application, and the effective unrestrained span. Unsupported length therefore means the span used in the applicable design model, not automatically the overall bar length.

Record solid or hollow geometry, outside and inside dimensions where relevant, section size at changes, unsupported length, support conditions, end connections, and possible eccentricity. Side loading or misalignment can add bending and alter contact conditions, so a nominally axial load description may be incomplete. These are design inputs for the responsible engineer; they are not properties that can be inferred from CK45/1045, 40Cr, or 42CrMo4/4140 names.

A buyer-facing material review should ask whether the design authority has already completed the applicable stability and strength checks and which supplied-material evidence those checks require. This guide intentionally publishes no Euler load, allowable load, safety factor, stress, or diameter rule. The approved sources do not establish a public application calculation, and a purchasing guide should not create one without the actual geometry, boundary conditions, load history, and governing design basis.

Sources:[4]

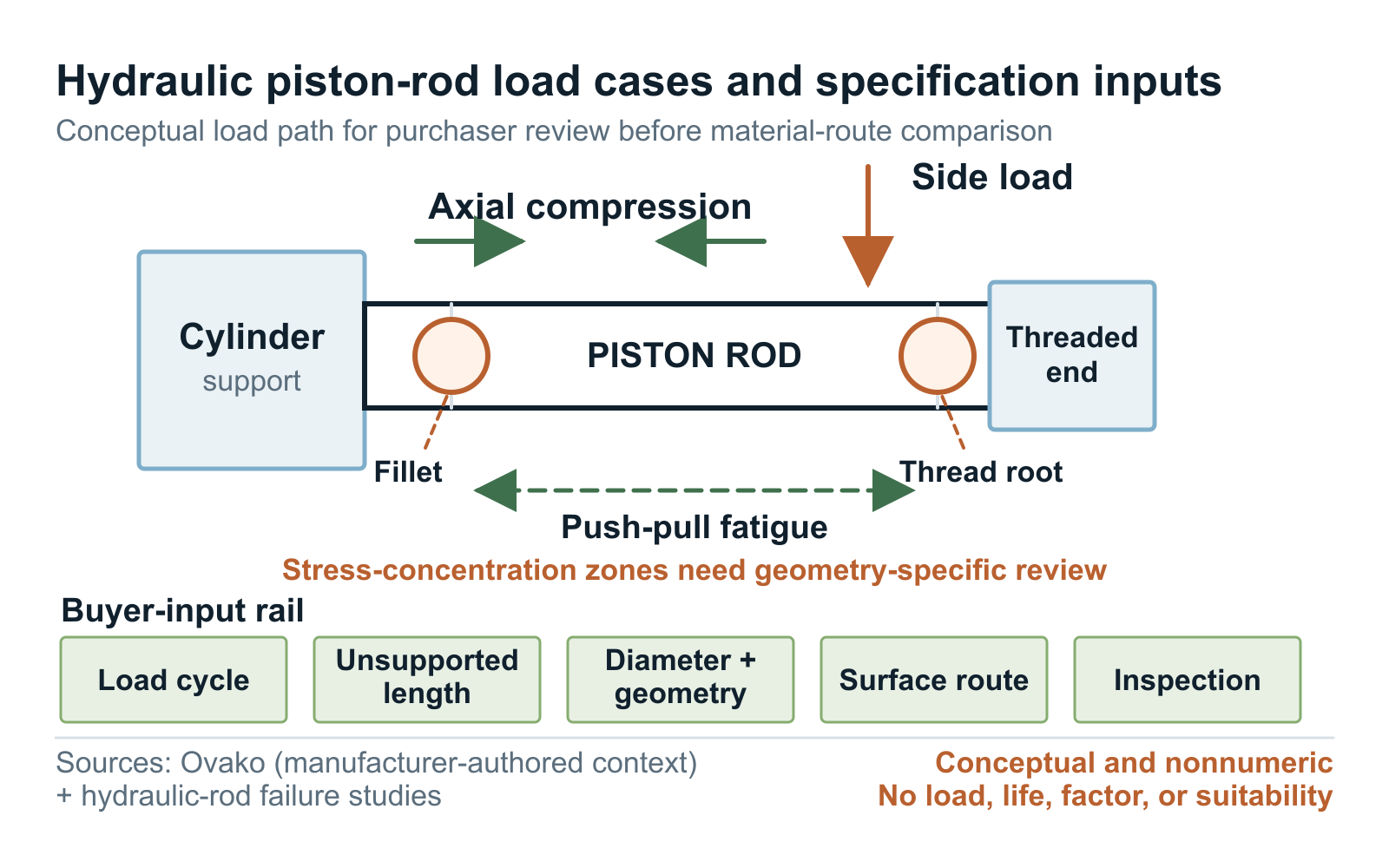

Check alternating fatigue, side loading, threads, and fillets

Alternating load means reversal or fluctuation over a defined history. Fatigue is progressive damage under that repeated history; it cannot be reduced to a single static strength label. Side loading and misalignment can introduce bending or change bearing and seal contact. A stress concentration is a local stress elevation associated with geometry, so a thread root, shoulder transition, groove, or fillet deserves explicit review even when the nominal rod section appears adequate.

Tavares and co-authors analyzed one failed large hollow hydraulic-cylinder rod made from 42CrMo4 and reported a fatigue failure in a component-specific stress-concentration context. This is one case, not a population study, and it does not establish a general failure rate, allowable stress, or a positive or negative verdict on 42CrMo4.

The threaded-end fatigue paper is one piston-rod application comparing two threaded-end designs. It supports treating thread roots and transitions as stress-concentration review points, but it does not establish universal fatigue life, allowable load, failure prevalence, or material suitability. The engineering inference is narrow: connection geometry and load history belong in the design and RFQ conversation. It is not evidence that most rods fail at threads or that changing grade alone resolves a local geometry problem.

The matrix organizes evidence requests; it contains no allowable value, safety factor, grade ranking, or substitute for application design.

Sources:[2][3][4]

Sources:[2][3]

Compare CK45/1045, 40Cr, and 42CrMo4/4140 as candidate routes

Compare a candidate route, not an isolated grade label. A complete route identifies the controlling material standard, exact grade designation, section size, delivery condition, heat-treatment status, required properties and test basis, machining sequence, surface route, dimensions, traceability, and inspection package. Cross-standard names should not be treated as automatic equivalents, and a familiar designation does not settle the effect of section, condition, or downstream processing.

CK45/1045 can enter the review where the drawing and property basis permit that standard-condition-process route. 40Cr remains a route to review under its own controlling standard and required condition, not a recommendation by grade name. 42CrMo4/4140 can enter on the same terms. These are sourcing review paths, not labels for medium, high, or severe duty. The approved evidence contains no controlled head-to-head dataset across these routes, sizes, conditions, load histories, and surface processes.

The one large hollow-rod failure case is useful negative evidence against grade-only reasoning: it shows why component-specific stress concentration and fatigue context matter, while providing no verdict on the grade family. JOTAIN recommends documenting why each candidate remains under review and what evidence would remove it. The final route belongs to the purchaser's design and quality authorities using the governing drawing, calculations, standards, process qualification, and inspection results.

Sources:[2][3][4]

Connect surface condition, straightness, machining, and plating preparation

Surface condition, straightness, machining allowance, and plating preparation are separate requirements. State whether the incoming route is black, peeled, or ground bar, then define material removal, final surface process, protected areas, and inspection stage. A straightness requirement needs a drawing value, datum or support arrangement, measurement method, handling basis, and applicable stage. Do not assume an incoming result remains unchanged after machining, heat treatment, grinding, polishing, or plating.

Machining allowance should connect the supplied size to the planned removal sequence and final geometry. Plating preparation should define the agreed pre-plate surface and the party responsible for final preparation and acceptance. The phrase chrome-ready is too vague without a surface specification, defect criteria, cleaning and preparation route, and inspection method. Surface appearance in a photograph is not a measurement, and a supplier statement should not replace drawing-controlled evidence.

ISO 3320:2013 is cited only for piston-rod interchangeability dimensions; its scope does not establish functional characteristics. It therefore cannot justify a material grade, allowable load, fatigue life, buckling resistance, surface route, or fitness-for-service claim. Application tolerances, straightness, surface condition, machining allowance, and plating preparation must come from the controlling drawing, contract, process specification, or an approved technical agreement.

Sources:[1][4]

Write the evidence and inspection package

The purchase package should name the part and drawing revision, rod function, load-case inputs supplied for material review, controlling material standard and grade, solid or hollow section, dimensions, delivery and heat-treatment condition, property and test requirements, machining allowance, surface route, straightness and dimensional checks, traceability, inspection stage, records, and approval owner. Where alternatives are permitted, state who may approve them and which evidence must accompany the proposal.

Buyer-control recommendation: MTCs and UT reports are purchaser-controlled material and inspection evidence, but do not substitute for application-specific design calculation, fitness-for-service approval, field-performance validation, or proof of mill service life/wear performance. Link the RFQ to the dedicated material-certificate and round-bar UT authority guides and name the approval owner.

Finally, close the feedback loop. Record nonconformities, machining findings, straightness changes, surface-preparation issues, assembly observations, and service feedback against the heat or lot and drawing revision. Distinguish a measured finding from a one-off case observation, an engineering inference, and a buyer recommendation. That discipline lets the next review improve the specification without turning one component result into a universal material rule.

Sources:[1][2][3][4]
