Start with the inspection coverage
A hydraulic rod RFQ should state which checks are required by the drawing, project specification, buyer procedure, or destination market. This keeps inspection language separate from assumptions.
Material and document checks
Buyers may request MTC, chemical composition, mechanical properties, hardness, heat number traceability, delivery condition, and grade standard confirmation depending on project requirements.
Dimensional and surface checks
For rod routes, include diameter, length, tolerance, straightness, surface condition, specified roughness, machining or grinding route, and drawing-controlled details.
UT, third-party inspection, and shipment
UT and third-party inspection should be stated if specified. Include inspection timing, required documents, packing, marking, destination, and shipment document expectations.
Surface route and final-use language
Rod inspection wording should match the ordered route: black bar, peeled bar, ground bar, machined blank, polished route, or chrome-plating preparation. The final use helps decide which dimensions and surface points need review.
Document release before packing
If MTC review, dimensional records, straightness confirmation, surface photographs, UT records, or third-party inspection must happen before packing, put that timing in the inquiry.

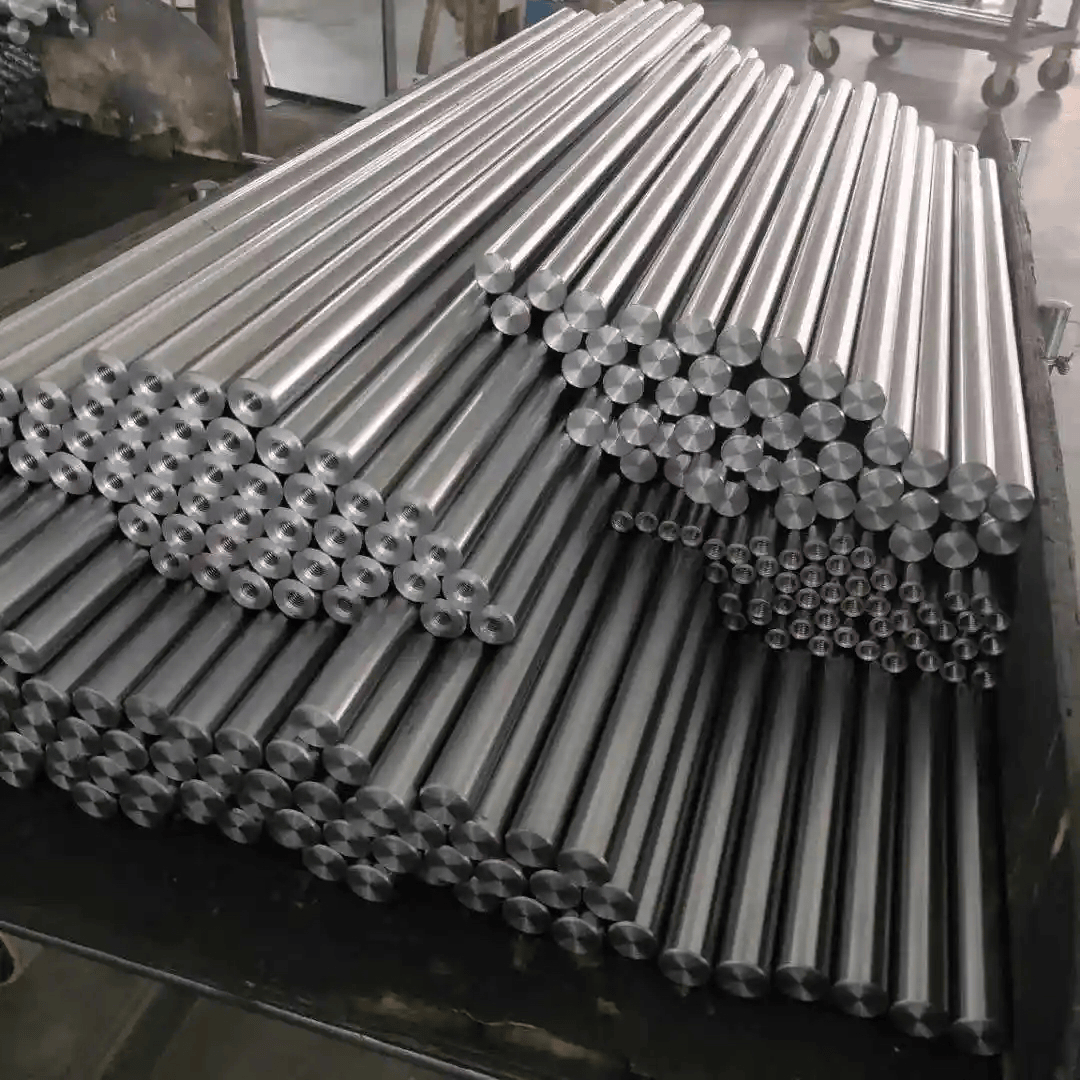

Map inspection to the supplied manufacturing stage
First state whether the supplier delivers bar stock, cut blanks, machined rods, or finished surface-treated rods. The inspection plan must stop at the actual contractual boundary. ISO 683-1 and ISO 683-2 provide product context for covered non-alloy and alloy-steel routes, but they don't establish hydraulic-cylinder design, coating performance, seal compatibility, or finished-rod geometry. Do not use a base-material certificate as acceptance for operations performed later.
Inspection by supply stage
| Inspection decision | RFQ definition | Required records | Responsibility boundary |
|---|---|---|---|
| Base material | Grade, product standard, edition, delivered condition, section, and ordered tests | Inspection document with actual results and heat-to-lot identity | Applies only to the represented incoming or delivered material state |
| Geometry | Drawing revision, datum scheme, diameter, form, straightness, runout, end zones, and sample extent | Calibrated dimensional record linked to each required rod or lot | ISO 1101 defines GPS language; the drawing selects tolerances and verification |
| Surface and decarburization | Functional zones, preparation, permitted condition, method, locations, frequency, and disposition | Surface inspection and ISO 3887 report only where ordered | The method does not choose an acceptable depth or finished-surface criterion |
| Final release | Identity map, deviations, rework, packing protection, hold point, and shipment approver | Indexed dossier, closure record, rod or bundle list, and packing evidence | Release covers only the accepted scope and revision |
Control measurement stage, identity, and nonconformance
A result is meaningful only at the stated manufacturing stage. Diameter before coating, as-coated diameter, and final finished diameter are different characteristics. Straightness before and after thermal or finishing operations may also answer different process questions. Define the datum, support, gauge length or evaluation basis, temperature or conditioning if relevant, measurement locations, end exclusions, sample extent, and calibrated equipment record required by the inspection plan.
If decarburization matters because material will remain near a functional surface or enter a later treatment, specify the condition to be examined, method, sample location, frequency, permissible result, and remaining stock after removal. ISO 3887 defines determination methods, not an order limit. For any nonconformance, state who may rework, remeasure, sort, submit a concession, or reject, and preserve the affected rod or lot identity through final release. [3]
For final surface-texture inspection, record the parameter, filtering, evaluation length and instrument setup. NIST’s calibration report explains why these choices affect the measurement. Identify the inspected rod state and locations so a base-bar measurement cannot be mistaken for a finished seal-surface result. [5]
RFQ example
Item: Hydraulic-rod products to [drawing and revision], [quantity]
Supply boundary: [bar, cut blank, machined rod, or finished surface-treated rod]; supplier and subcontract operations listed in route map
Base material: [grade, product standard, edition, condition, section, and surface]; no substitution without written approval
Geometry inspection: Controlled datums, dimensions, form, straightness, runout, locations, end zones, frequency, and records per drawing
Surface inspection: Functional zones, preparation, ordered texture or defect criteria, and decarburization method and locations only where specified
Traceability: Heat-to-process-lot-to-rod-or-bundle map maintained through every identity transfer
Release: Indexed actual-result dossier, closed deviations, approved final packing, and written hold-point clearanceQuestions buyers ask
What inspection details matter for hydraulic rod RFQs?
Common buyer details include MTC, chemistry, mechanical properties, hardness, dimensions, straightness, surface condition, heat number traceability, UT if specified, and third-party inspection if specified.
Should hydraulic rod buyers attach drawings?
Yes, when tolerance, straightness, surface condition, final size, end details, or inspection requirements are drawing-controlled. Drawings help align quotation review with the actual rod route.
What should hydraulic rod buyers inspect before shipment?
Hydraulic rod buyers often review MTC, dimensions, straightness, surface condition, traceability, packing, marking, and third-party inspection records if specified. State which checks are mandatory.
RFQ checklist
- Rod type, application, and required grade standard
- Diameter, length, quantity, rough size, and final size
- Delivery condition and surface route
- MTC, chemical composition, mechanical properties, and hardness if required
- Dimensional, straightness, surface condition, and roughness requirements
- Traceability, UT, third-party inspection, and document requirements
- Packing, marking, destination, and drawings or specifications
- Document review timing before packing if required
- Surface photos, dimensional records, or straightness confirmation if specified
- Exact supply boundary, drawing revision, route map, processors, and subcontractors
- Base grade, product standard, condition, section, surface, and actual-result evidence
- Datums, dimensions, straightness, runout, locations, end zones, and sample extent
- Surface condition, decarburization need, methods, locations, frequency, and acceptance
- Heat, process-lot, rod or bundle identity transfer and deviation traceability
- Inspection stage, rework authority, document register, packing protection, and release
References
- ISO 683-1:2016 Non-alloy steels for quenching and tempering
- ISO 683-2:2016 Alloy steels for quenching and tempering
- ISO 3887:2023 Steels — Determination of the depth of decarburization
- ISO 1101:2017 Geometrical product specifications — Geometrical tolerancing
- Vorburger et al.: NIST roughness calibration and measurement uncertainty
