Grinding rod size selection: diameter, length, and rod-mill fit

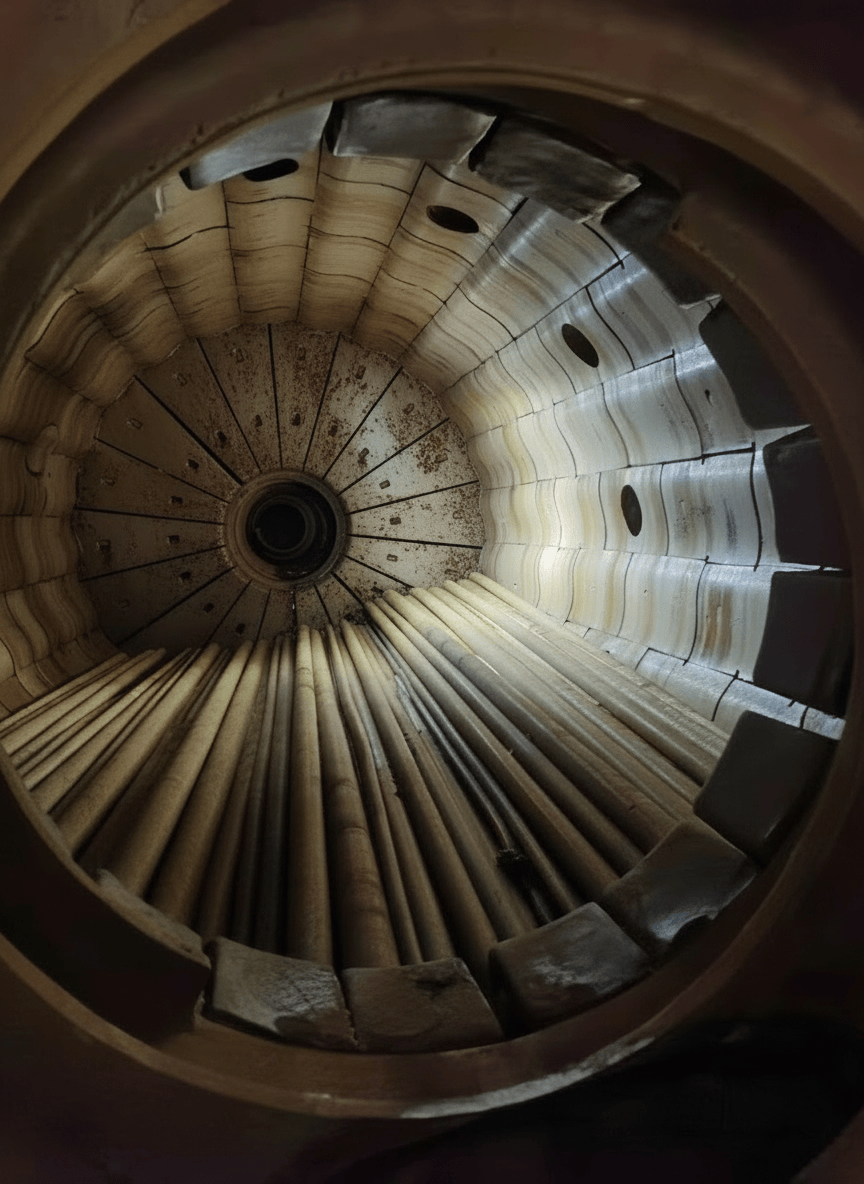

The actual mill working envelope

Rod diameter and rod length solve different problems. Diameter affects the charge and its grinding response. Length has to fit the working space inside the installed mill. Ordering both from a nominal mill nameplate skips the measurements that matter.

Start with the current drawing or an approved measurement of the mill: internal diameter, effective working length, liners, end geometry and feed/discharge hardware. Record the drawing revision and liner condition. A replacement liner or altered end arrangement can change a dimension that looked settled on the previous order.

Put the present rod charge beside the drawing: make-up sizes, worn diameters, charge mass and recent bent or broken removals. A size change should address an observed problem or process target, not simply make the catalogue selection look tidier.

Sources:[1][2][3]

Is the problem diameter, length—or the operating condition?

Start with the symptom, then check the dimension or process record that can explain it. Several causes can produce the same symptom, so keep the observations separate from the conclusion.

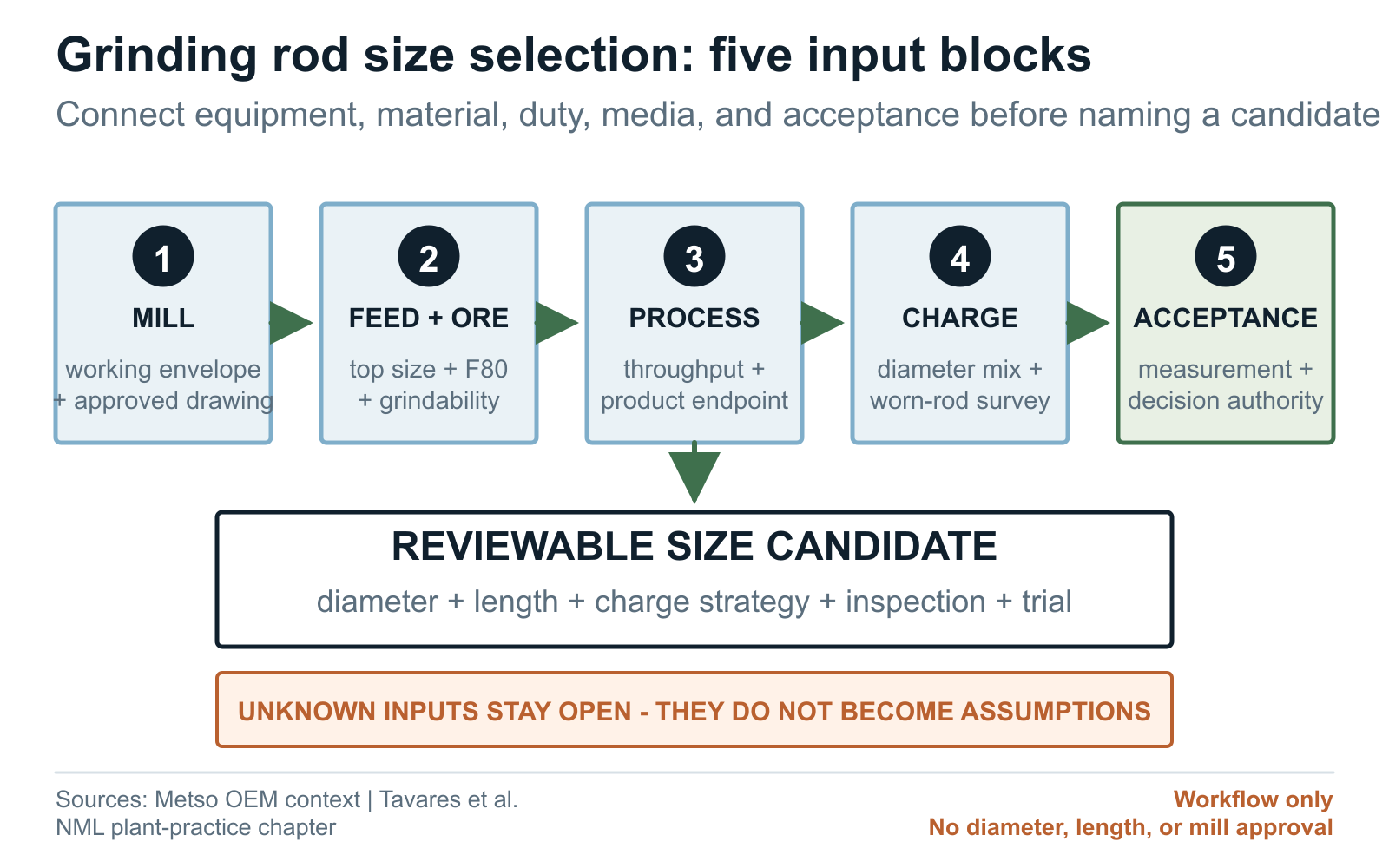

The size-selection input sheet

A useful enquiry can start with one page of plant information. The essential records are the mill’s usable geometry, the feed, the current rod charge and the product target. Leave missing fields open until they have been measured or confirmed.

For the feed, include a dated size distribution, top size and F80 where available, plus the ore or blend identity and moisture/solids basis. Keep the plant’s grindability data with the tested sample identity. A Bond rod-mill work index describes a test response; it is not itself a diameter-selection formula.

For the operating baseline, include dry tonnes per hour, speed, power, product-size distribution, liner condition and recent failure or tangling events. These records give a candidate size something concrete to improve.

Sources:[1][3][7]

Sources:[1][3][7]

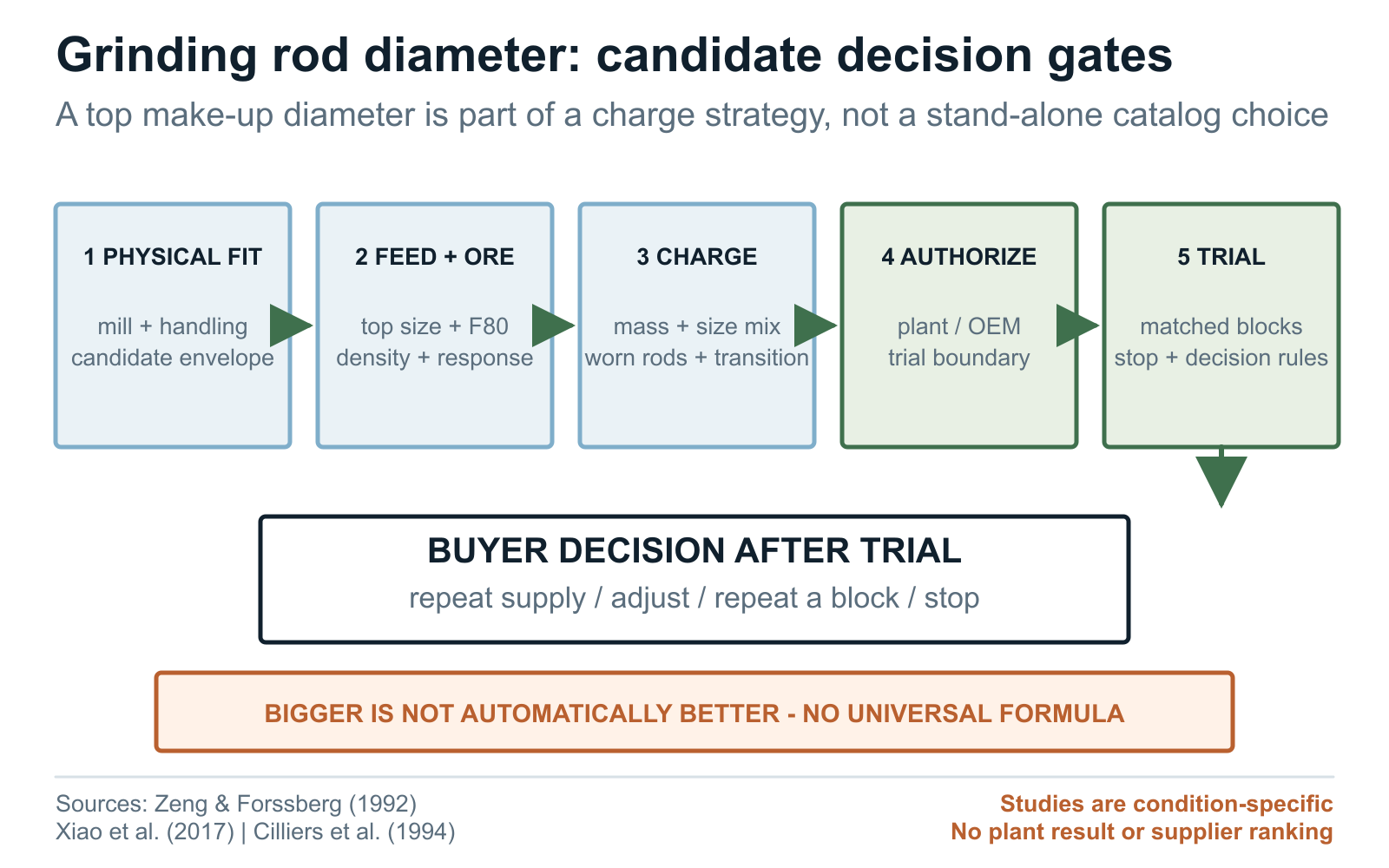

Rod diameter as a trial charge strategy

At the same steel mass and rod length, changing diameter changes the number of rods and the available surface area. It also changes the contact conditions between media and feed. The right candidate depends on the ore and the work the mill has to do.

For a simple geometric comparison, reduce diameter from 100 mm to 80 mm while holding total steel mass, length and density constant. The idealized rod count becomes (100 ÷ 80)² = 1.5625 times as large, and cylindrical side area becomes 100 ÷ 80 = 1.25 times as large. That is 56.25% more rods and 25% more side area—not a prediction of grinding output.

The worn size distribution makes a real charge more complicated than that calculation. Review the candidate make-up size against the existing charge and handling route. If the trial is intended to isolate diameter, keep grade and treatment condition consistent. Changing all three at once tests a package, not diameter alone.

When diameter changes, keep the radial hardness profile and heat-treatment condition in the review as well.

Sources:[4][5][6]

Sources:[4][5][6]

A plant study: what changed between 100 mm and 80 mm rods?

Sources:[5]

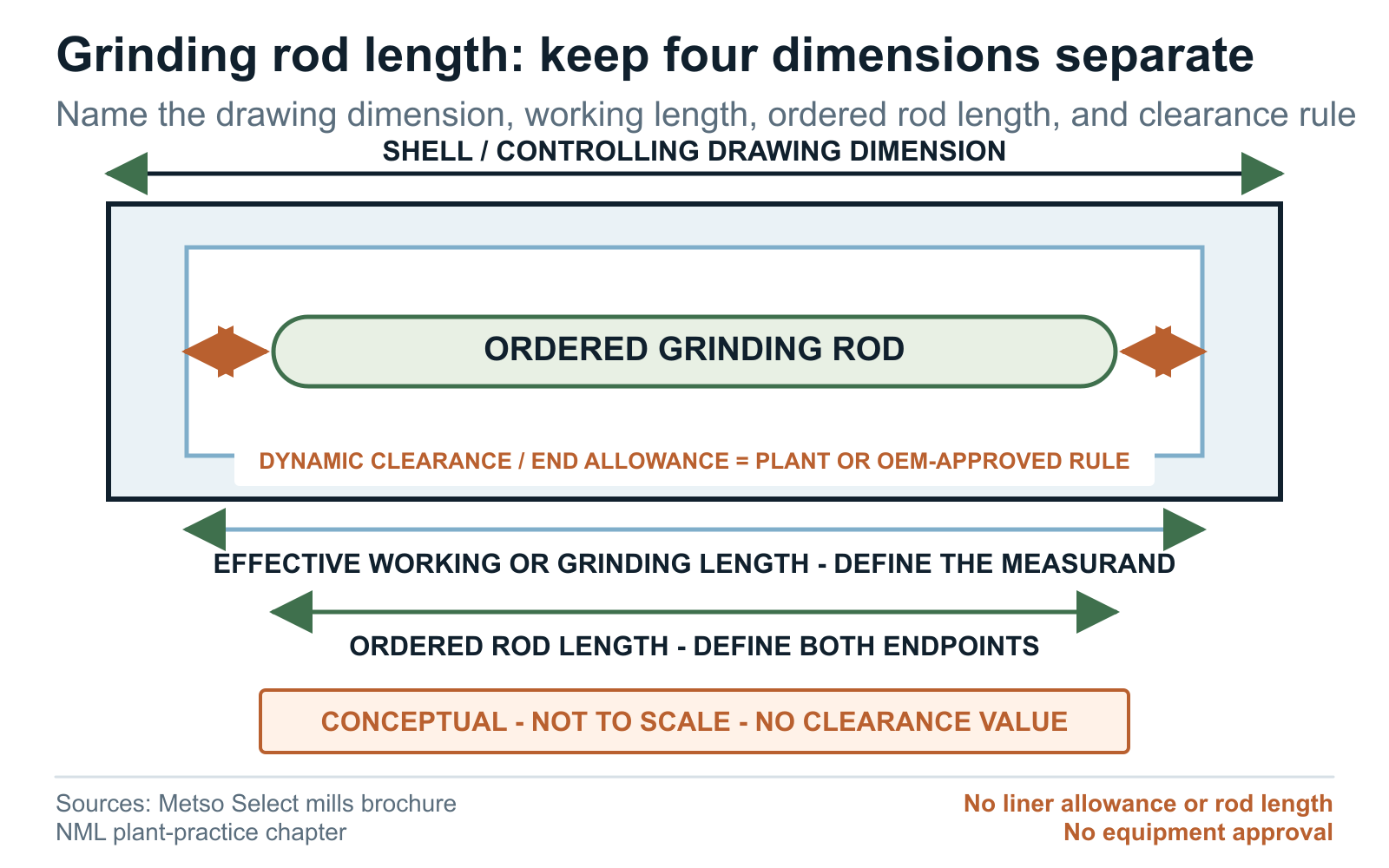

Rod length, effective grinding length, and dynamic clearance

Use the dimension that actually controls rod fit. Shell length, liner-to-liner distance and effective grinding length are not interchangeable labels. The mill drawing and installed end geometry should establish which measurement governs the order.

Metso’s Select mill brochure, for example, lists rod-mill models by mill diameter and effective grinding length. Those are equipment dimensions. They are not an instruction to order rods at the listed EGL.

Have the plant or mill OEM confirm the working clearance for the installed arrangement. Include the rod-length tolerance, ends, straightness and liner condition. Keep those acceptance items separate: a rod can be within the length limit and still have an unacceptable end condition or bend.

Sources:[2][3]

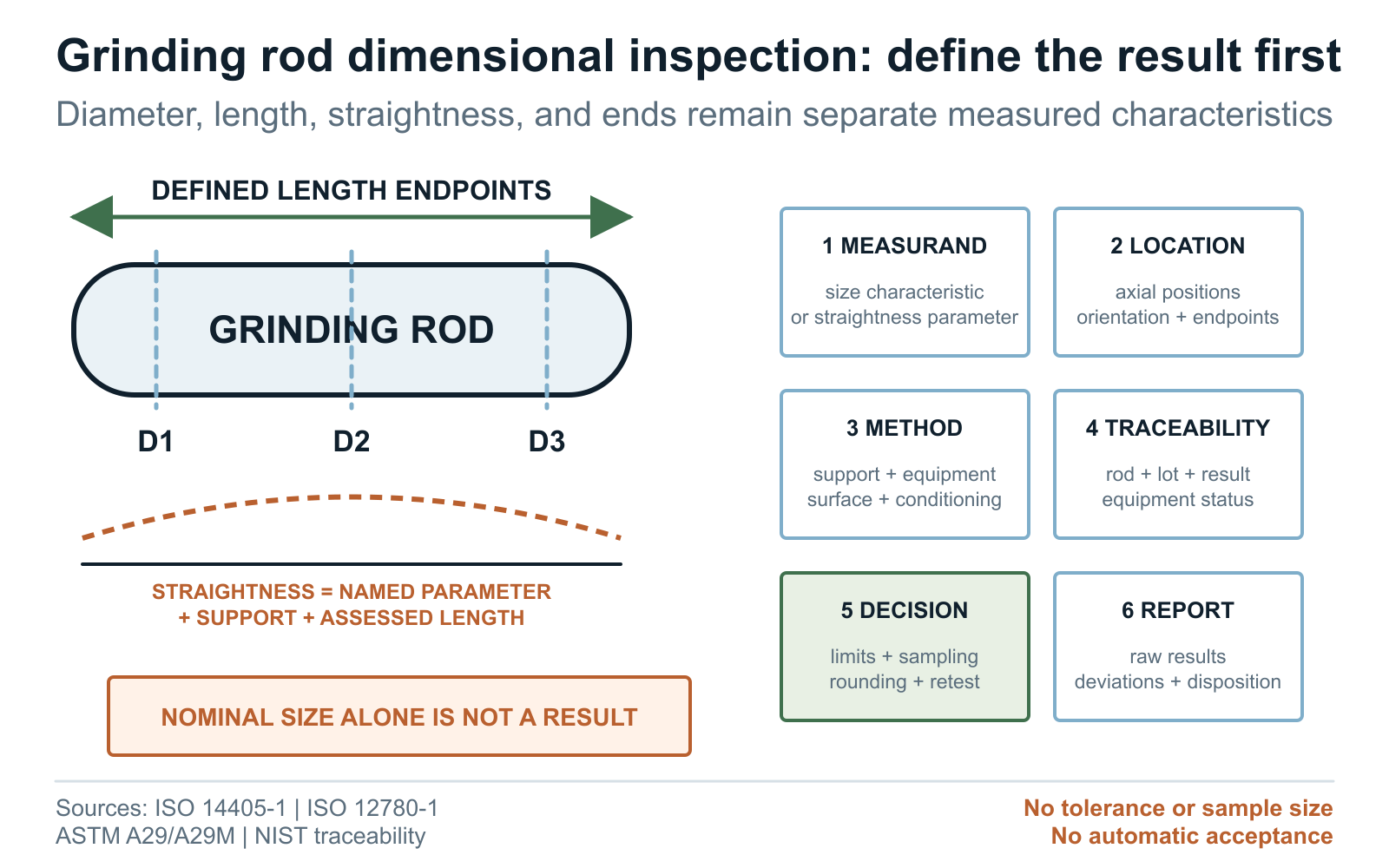

Diameter, length, straightness, and end requirements

“100 mm × 4 m” identifies a nominal product, not a complete inspection requirement. State the permitted diameter and length limits, where measurements are taken and which ends define the length. ISO 14405-1 provides dimensional vocabulary; the order supplies the values.

Straightness needs its own method. Specify the assessed length, supports, orientation, measurement setup and acceptance limit. A maximum gap measured over one support span is not automatically comparable with a result from another setup. ISO 12780-1 helps define the characteristic, but it does not choose a grinding-rod limit.

Retain the individual readings and the rod or lot identity. Record the instrument and verification status, inspection date and any rework or retest. These details make an outlying rod traceable after the bundle has been opened.

Sources:[8][9][10][11][12]

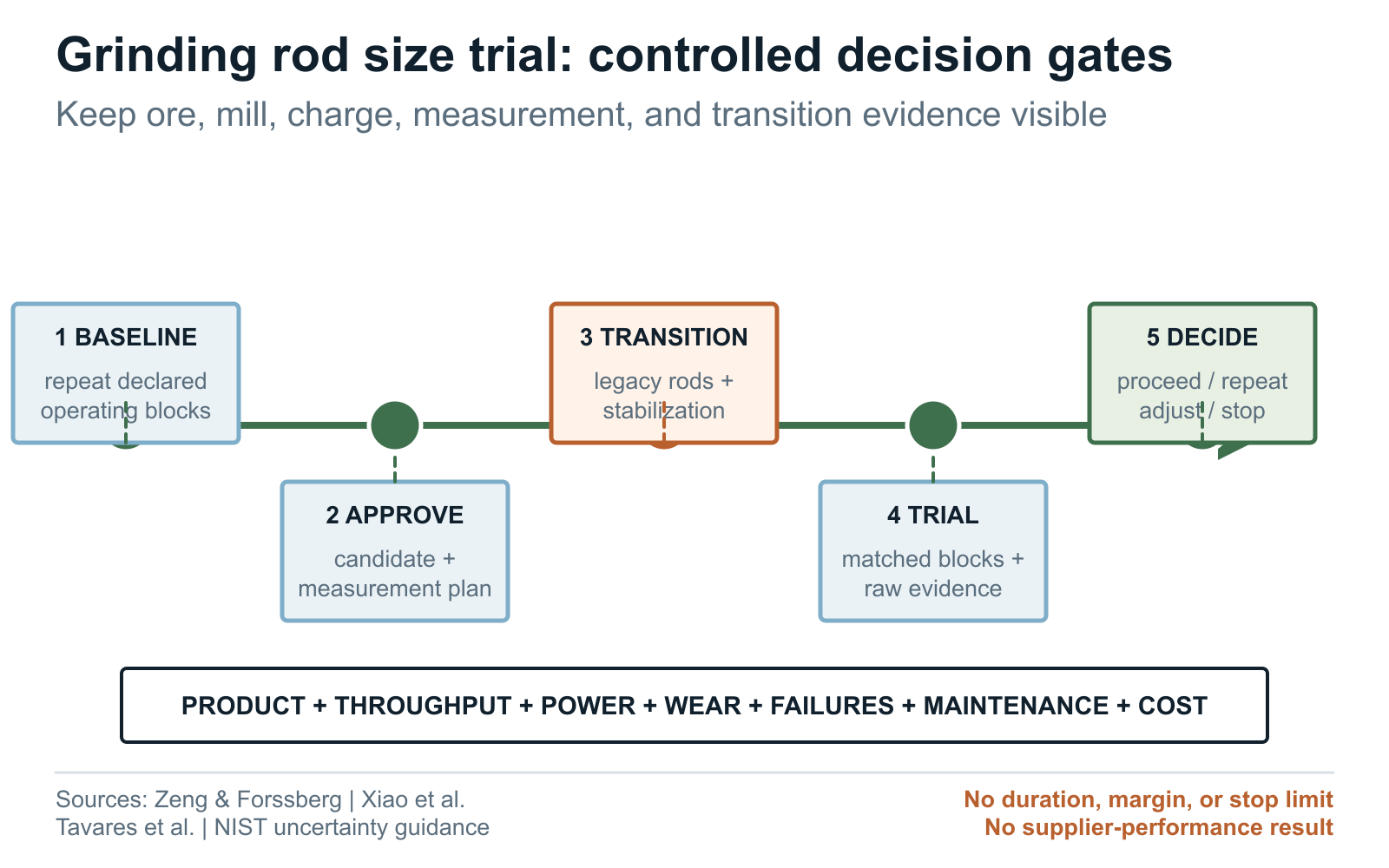

Size qualification in matched operating blocks

Write down the question the size trial is meant to answer: a finer product at the same duty, more throughput at the same product target, less consumption, or fewer early removals. Define the baseline, transition and candidate operating blocks before charging.

Keep the ore, feed, liner state, speed and charge mass close enough for a meaningful comparison. Track product size, throughput, kWh/t, adjusted rod consumption, breakage, bending and handling events. A lower kg/t is not an improvement if it accompanies an unacceptable product.

Agree the site stop rules and who reviews the outcome. The decision may be to adopt the size, adjust it, repeat the comparison or stop. If the operating conditions drift too far, keep the records and repeat under a clearer baseline.

Use the kg/t mass balance and supplier-trial guide to separate charge changes from consumption during the size trial.

Sources:[4][5][7][12]

RFQ and purchase-order wording

From the mill requirement to the manufacturing order

Carry the confirmed dimensions, treatment condition and inspection requirements through to the order and lot records.

Select an image to open the full-size original and inspect its labels.

Send the confirmed dimensions and the remaining mill questions on the same brief. We can review manufacturability, the material route and the inspection requirements. The installed mill’s fit and operating approval need the plant’s engineering or OEM confirmation.

For a trial order, include quantity, lot identity, transition plan, measurements and review date. For repeat supply, refer to the approved specification revision and require agreement before changing the dimensions, material, treatment or inspection plan.

The outline below can be copied into an enquiry. Attach the current mill drawing, feed-size record, charge history and photographs of removed rods. That gives the supplier and the plant a common starting point.

GRINDING ROD SIZE RFQ / PO OUTLINE
Mill: [site, mill tag, OEM/model, discharge arrangement, internal diameter, effective working length]
Current duty: [ore/feed, top size and F80, wet/dry basis, throughput, speed/power, product target]
Current charge: [rod diameters and lengths, total mass, worn-size spread, recent breakage, bending, or tangling]
Candidate rods: [diameter, length, grade/standard, heat-treatment condition, trial quantity]
Fit confirmation: [liner and end clearances confirmed by plant engineering or mill OEM]
Dimensions: [diameter and length limits, straightness, end condition, inspection method, sampling]
Traceability: [steel heat, heat-treatment lot, bundle, certificate]
Trial blocks: [baseline, transition, stabilization, candidate run]
Measures: [product size, throughput, power, adjusted rod consumption, failures, downtime]
Stop rules: [site safety, mill operation, charge condition, and commercial hold points]
Decision: [proceed, repeat, adjust, or stop]
Change control: [no change to dimensions, material route, heat treatment, inspection, or trial method without written approval]
Supplier return: [exceptions, alternatives, open assumptions, delivery, packing, destination]
