Grinding rod hardness testing and heat treatment

Grinding rod hardness: what a complete requirement includes

A complete grinding rod hardness clause states eight linked fields: the hardness scale, governing method and edition, test-surface preparation, exact test locations, number and spacing of readings, production condition and inspection stage, heat or process-lot sampling, and the acceptance, retest, and deviation authority. The requirement should also say whether the result is a direct measurement or a permitted conversion. ASTM E10-23 and ASTM E18-25 both warn that hardness measured at one location may not represent the whole part or end product. That warning is directly relevant to a long, heat-treated grinding rod.

• Method — identify HRC, HBW, or another purchaser-approved scale and the governing standard edition.
• Preparation — define the test surface, material removal, finish, and how decarburized or altered layers are handled.
• Location — map the distance from the surface and center, the transverse plane, and the distance from each rod end.
• Sampling — state readings per location and the heat, furnace batch, process lot, and quantity represented.
• Condition — identify whether testing is after quench, after temper, after straightening, after final surface preparation, or at another accepted stage.
• Reporting — require individual readings, units or scale, equipment identity, verification status, specimen or rod identity, date, and operator or laboratory record.
• Disposition — define acceptance, retest sample, segregation, concession, and rejection rules without letting the supplier choose them after a failure.
• Authority — name who can approve a changed method, converted value, omitted location, alternate lot basis, or deviation.

Sources:[1][2][3][4]

HRC vs HBW: choose the method before the number

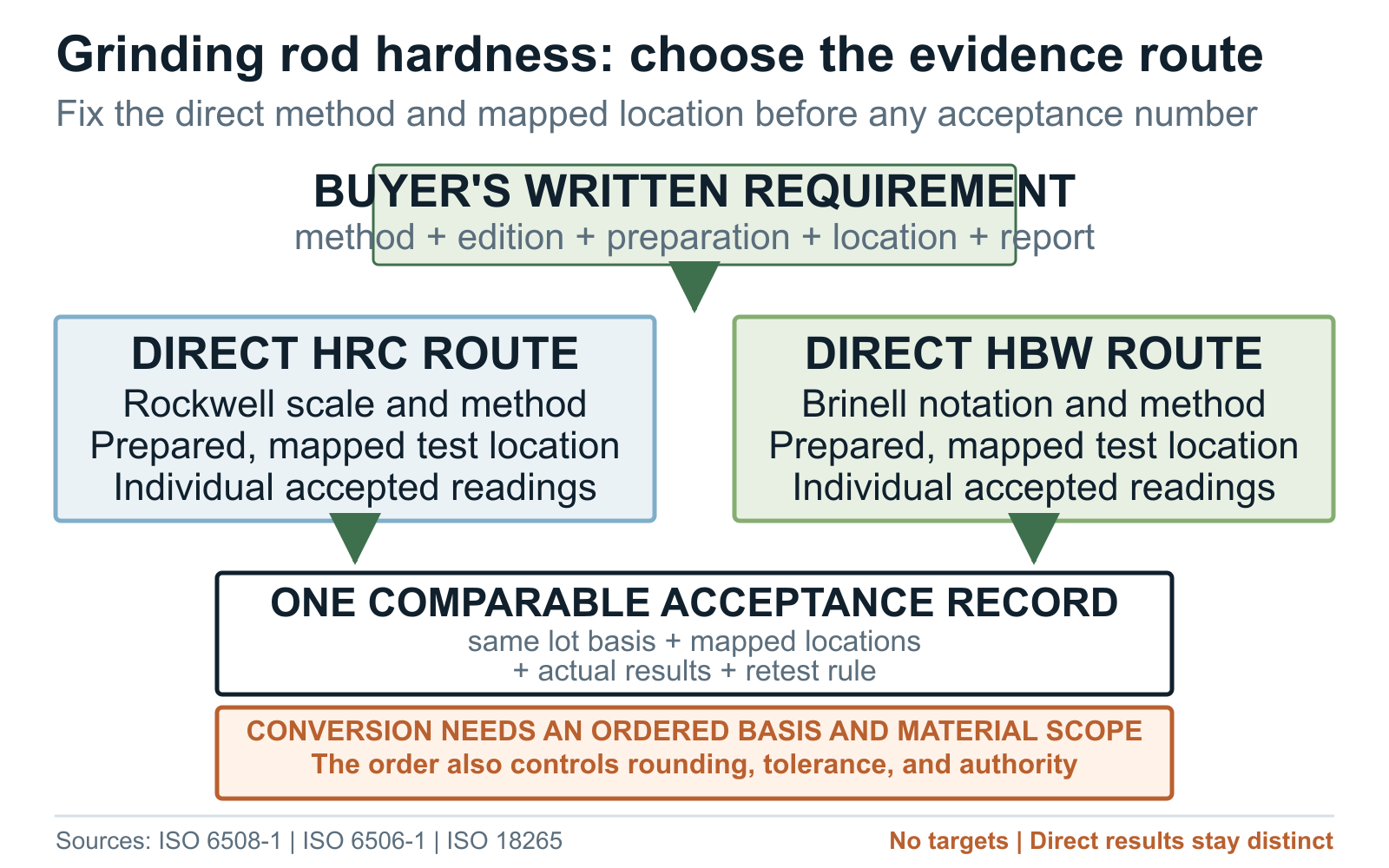

Grinding rod HRC and HBW results come from different standardized indentation methods. ISO 6508-1:2023 covers regular and superficial Rockwell scales, including scale C, for stationary and portable machines. ISO 6506-1:2014 defines the Brinell test method for fixed-location and portable machines and was confirmed as current in 2025. The buyer should select the method that matches the ordered requirement and test geometry instead of asking the supplier to report whichever number is easiest to obtain.

The order must control surface preparation, curvature or support concerns, equipment and verification records, the number of valid readings, and how individual readings are reported. Do not hide scatter behind an average unless the acceptance document defines both the averaging rule and the treatment of an outlying reading. If production inspection and qualification use different methods or locations, label the two evidence sets separately.

A converted HRC or HBW value is not the same as a direct test result. ISO 18265:2013 states that converted hardness values are directly applicable only to the exact material tested; for other materials they are indicators, and conversion is not intended to replace the correct standard method. State whether conversion is prohibited, informational only, or accepted under a named table, material scope, rounding rule, and purchaser-approved tolerance.

This table selects evidence fields. It gives no hardness target and does not make HRC and HBW interchangeable.

Sources:[1][2][5]

Sources:[1][2][5]

Map the grinding rod surface-to-core hardness profile

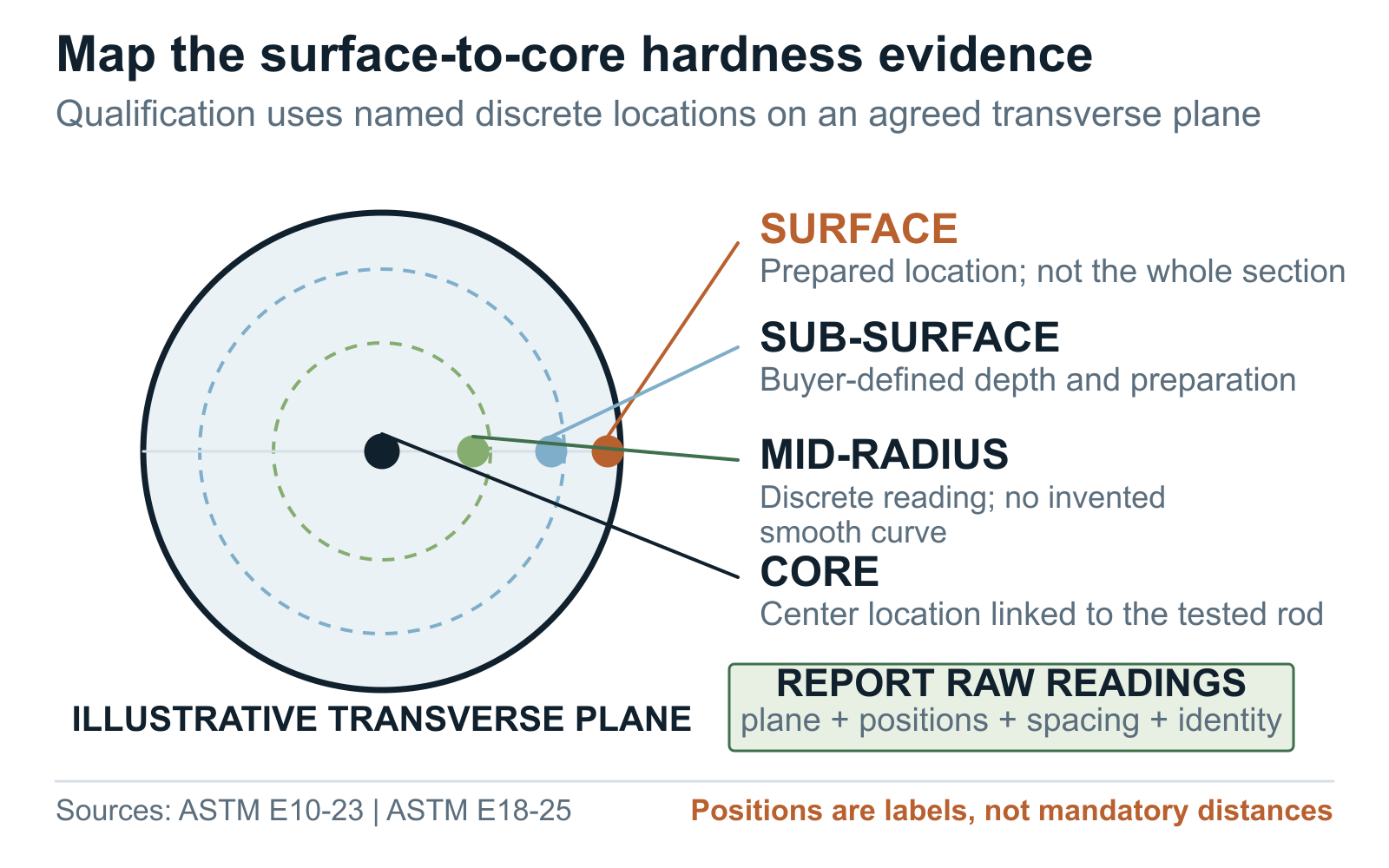

Grinding rod surface hardness and grinding rod core hardness answer different location questions. A surface reading can screen a production condition at that surface, but it does not reveal the sub-surface, mid-radius, or center response. For qualification, draw the transverse section and name every radial location from the finished surface or centerline. State whether the sample is a complete cross-section, a removed coupon, or another buyer-approved representation of the finished production rod.

The map should define the tested plane, preparation sequence, orientation, number of impressions at each radial location, spacing between impressions and edges, and how symmetric locations are used. Do not publish a smooth hardness curve when only a few discrete points were measured. Plot individual results or a clearly declared summary and retain the raw data in the inspection record.

Surface preparation can change what the test represents. The buyer should state how scale, oxidation, decarburization, machining heat, grinding damage, or other altered material is handled and whether the acceptance plane is the as-supplied surface or a prepared sub-surface. ASTM E10-23 and ASTM E18-25 make the governing boundary clear: a specific-location reading may not represent the whole finished product.

For routine production, a full transverse profile may be sampled at an agreed qualification or periodic frequency while faster direct surface checks monitor the defined lot. That split is acceptable only when the order connects the routine check to a qualified route and states what event requires a new profile, such as a changed diameter, heat-treatment route, equipment, process window, or approved material route.

Sources:[1][2][3][4]

Map longitudinal hardness locations along the working length

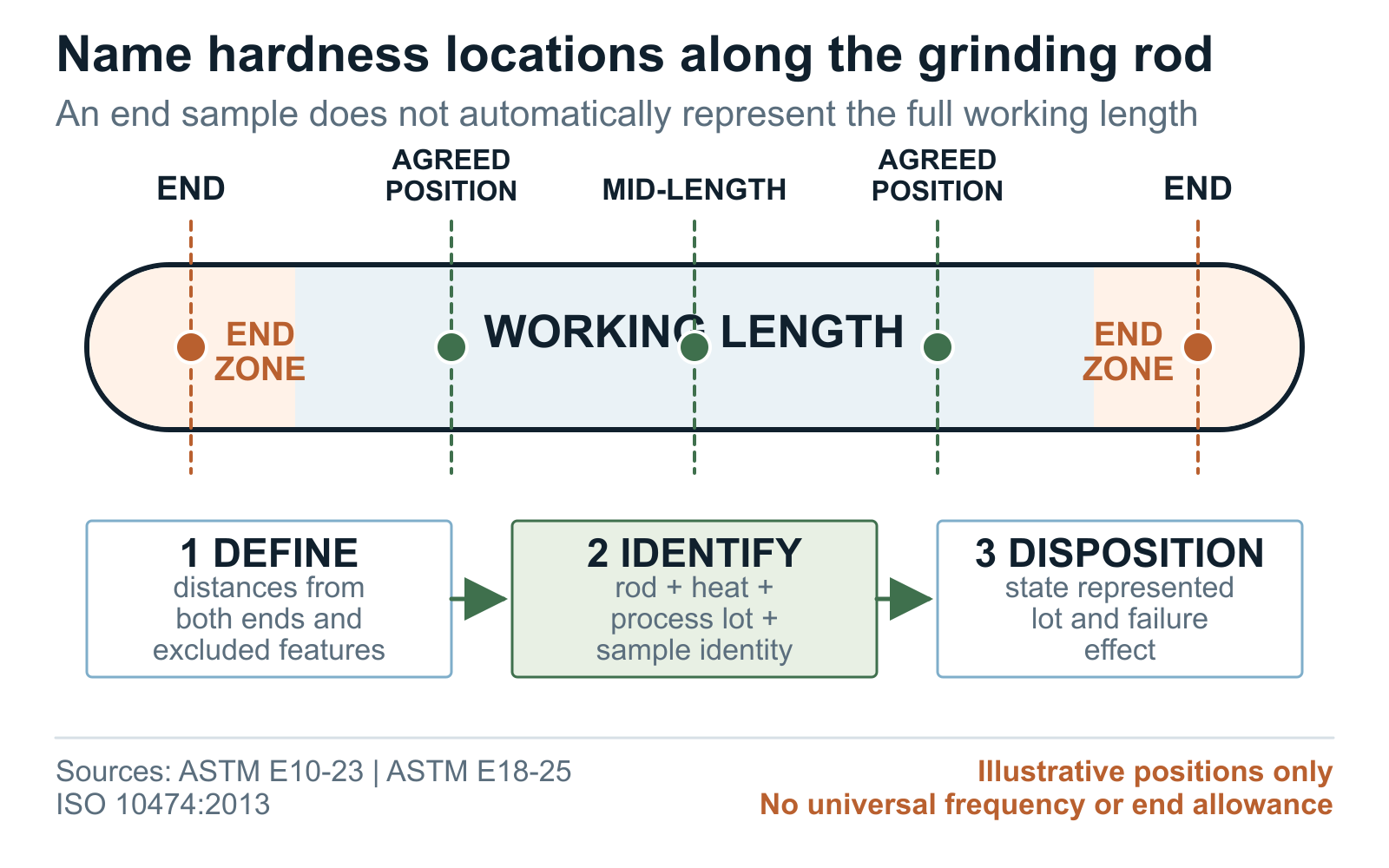

A transverse hardness profile is still incomplete if its position along the rod is unknown. End heating, transfer, quench entry, support, straightening, cutting, and end preparation can create zones that do not represent the full working length. The RFQ should state distances from both ends, which end features are excluded, and whether the measured sample represents an end zone, a quarter point, the mid-length, or another agreed location.

Separate destructive qualification from routine production inspection. A cut cross-section from one end may be practical, but procurement should not assume it proves the center of a long rod. If the supplier proposes an end coupon, extension, sacrificial length, companion coupon, or process qualification piece, require a written explanation of what it represents and how its identity remains linked to the production heat and process lot.

The longitudinal plan should also state whether rods from the beginning, middle, and end of a furnace or quench lot are sampled, how mixed heats are excluded, and how a failed location affects the represented lot. Record any trimmed length before shipment so the certificate, bar marks, bundle register, and final dimensions reconcile.

For a changed furnace loading pattern, rod length, diameter, quench arrangement, or straightening route, require the supplier to declare whether the existing qualification remains applicable. The purchaser's engineering and quality authorities decide whether evidence transfers; the supplier should not silently reuse a profile from a different geometry or process window.

Sources:[3][4][8]

Connect grinding rod heat treatment, section size, and lot identity

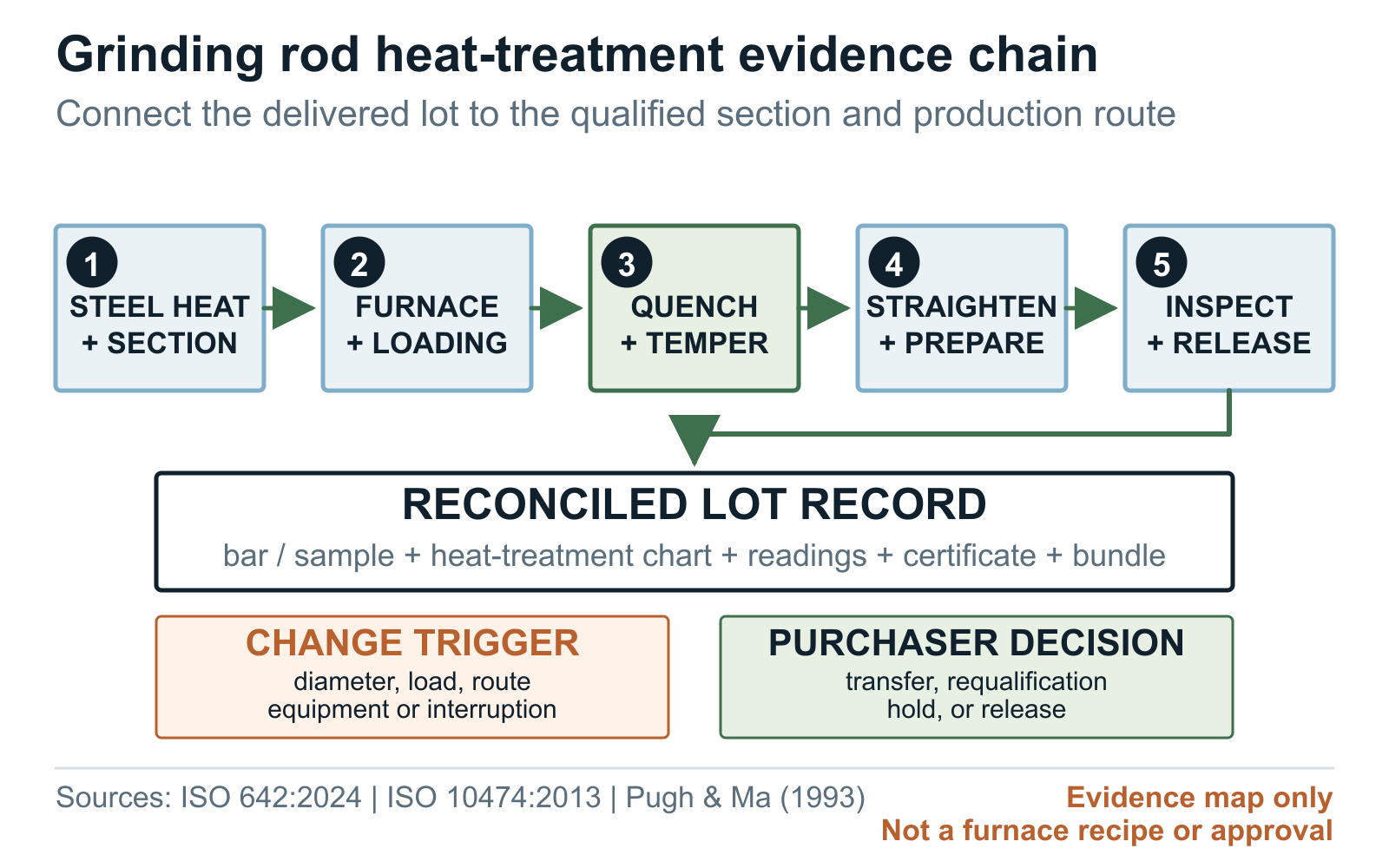

A grinding rod heat-treatment record should connect the steel heat, actual rod diameter, loading pattern, austenitizing operation, transfer, quench medium and control checks, tempering operation, straightening sequence, final surface preparation, inspection stage, and process-lot identity. Procurement does not need a supplier's confidential recipe, but it does need enough records to show that the qualified route and the delivered route are the same within the accepted control plan.

Section size matters because cooling response through a full rod is not described by the grade name or surface reading. ISO 642:2024 defines the Jominy end-quench method using a standardized test piece 25 mm in diameter and at least 100 mm long. A measured or purchaser-accepted calculated Jominy curve characterizes hardenability in that method; it is not a direct hardness map of a production grinding rod and does not validate the supplier's furnace, quench, temper, straightening, or final condition.

Heat-treated grinding rods also need a declared lot rule. State whether a process lot is one heat in one furnace and quench campaign or another agreed grouping, then define what breaks the lot: mixed heats, changed diameter, changed loading, process interruption, altered quench controls, reheat, retemper, re-straightening, or repair. Keep bar, sample, heat-treatment chart, hardness report, certificate, bundle, and packing-list identity reconciled.

If the supplier uses a prior qualification, require a transfer matrix comparing grade and standard, diameter and section, starting condition, equipment, loading, heat-treatment sequence, test locations, and acceptance basis. Any mismatch becomes an explicit purchaser decision rather than an implied equivalence.

Sources:[6][7][8]

Interpret hardness with microstructure, toughness, and mill evidence

Hardness is one material-condition indicator, not a complete wear or breakage forecast. Review the measured profile beside the declared steel and standard, microstructure evidence where ordered, toughness or impact evidence where required, surface condition, straightness, manufacturing deviations, and the rod-mill operating baseline. A higher surface number can change abrasion response while a changed through-section condition can also change fracture behavior; the final tradeoff is application-specific.

Pugh and Ma's 1993 Canadian Institute of Mining, Metallurgy and Petroleum paper is useful historical process evidence. It describes one supplier's heat-treated grinding-rod development using selective surface hardening with a lower-hardness core and reports an approximate 25% reduction in rod consumption in the named Endako trials running from July 1991. That supplier-authored historical case is not a JOTAIN result, a universal hardness profile, or a transferable life promise.

Use historical and laboratory evidence to design questions, then use the supplied records and a controlled plant trial for the order decision. Keep rod size, material route, heat and process lot, charge practice, mill and feed conditions, observation basis, breakage, bending, removals, downtime, and process deviations traceable. A trial conclusion applies to its documented window and does not convert a hardness profile into a permanent guarantee.

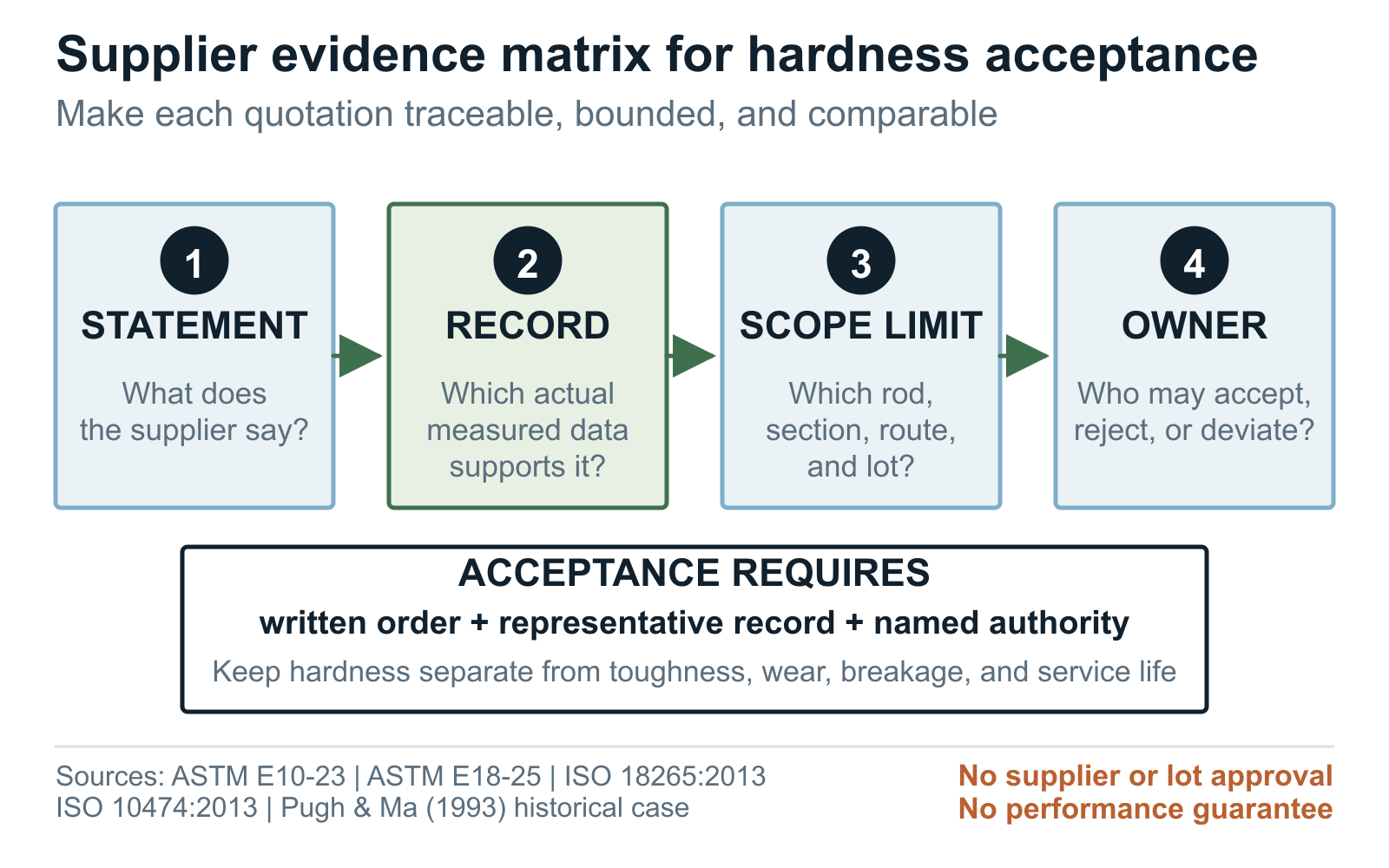

The supplier-evidence matrix below separates a claim from the record that can support it, the limit of that record, and the person who accepts it. Ask every bidder to complete the same fields. This creates a comparable quotation even when suppliers use different production routes or routine hardness methods.

A supplier statement becomes order evidence only within the represented product, process, sampling, and approval scope.

Sources:[3][4][5][7][8]

Sources:[3][4][5][7][8]

Write RFQ, certificate, retest, and deviation language

Write the grinding rod hardness test requirement as an acceptance system, not a number copied into one line. Put the required method and values in the buyer's schedule, attach the transverse and longitudinal location drawing, state the qualification and routine production frequency, identify the represented heat and process lot, and list the actual results required on the inspection document. ISO 10474:2013 defines inspection-document types supplied according to the order, but selecting a document type does not create tests or acceptance fields that the order never requested.

Define retest before production begins. State who selects the retest pieces, whether the original failed result remains in the record, how the lot is segregated, which locations are repeated, whether extra preparation is allowed, and what constitutes final rejection or a written concession. A supplier should not grind away a failed surface, switch scale, convert a value, split a lot, retemper material, or resample a favorable location without the approval named in the order.

Require a clause-by-clause deviation schedule with the quotation. Differences in method edition, scale, preparation, location, sampling, equipment, conversion, process-lot definition, certificate content, retest, or acceptance authority should be visible before manufacture. Silence is not acceptance, and a commercial data sheet does not override the signed order and its approved technical attachments.

The wording below deliberately leaves hardness values, dimensions, frequencies, and acceptance limits in brackets. Those are application and order decisions. Once the fields are completed, the requirement lets procurement compare offers, quality teams audit records, and plant personnel connect later observations to the supplied heat and process lot.

Item: Heat-treated grinding rods, [diameter] mm × [length] mm, [quantity / trial mass]
Required material route: [grade, controlling product standard and edition]; alternatives only through a clause-by-clause deviation approved in writing before manufacture
Final condition: [state supplied and heat-treated condition]; supplier to declare heat-treatment, straightening, final preparation, and inspection sequence
Hardness method: Direct [HRC to ISO 6508-1:2023 / HBW to ISO 6506-1:2014 / buyer-approved equivalent]; no conversion unless the order separately names ISO 18265:2013, applicable table and material scope, rounding, tolerance, and approval
Acceptance values: [buyer specification or drawing reference and revision]; this guide supplies no universal target
Transverse locations: [attach surface-to-core map with preparation, radial positions, impressions, spacing, and represented section]
Longitudinal locations: [attach end-zone and working-length map with distances, destructive qualification locations, and routine check positions]
Qualification sampling: [state heats, furnace or process lots, rod positions, changed-route triggers, and sample identity]
Routine production sampling: [state frequency, locations, actual readings, lot represented, and release stage]
Heat-treatment evidence: Link steel heat, ordered diameter, furnace/process lot, loading, cycle record, quench controls, tempering, straightening, final preparation, and inspection records
Inspection document: ISO 10474 type [state type] with actual ordered results, method, equipment identity and verification status, test locations, rod/specimen identity, heat and process-lot traceability
Retest and disposition: [state purchaser-controlled resampling, original-result retention, segregation, retest locations, rejection, concession, and approval authority]
Controlled trial: [if required, state comparable operating window, wear measure, breakage, bending, removals, downtime, deviations, and decision owners]
Packing and marking: Preserve heat, process-lot, bar or bundle, PO item, size, quantity, and destination identity through delivery
Only the accepted order, drawing, specification, and approved deviations define conformity for the supply.

Sources:[1][2][3][4][5][8]
